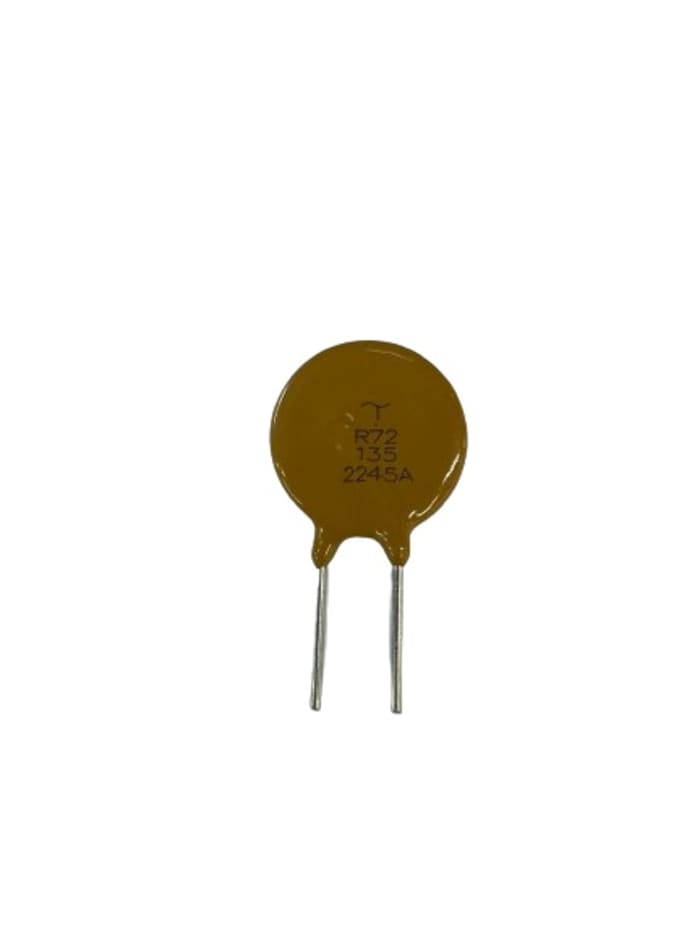

Littelfuse 1.35 A Resettable Fuse, 72 V

RS Stock No.: 517-6691PBrand: LittelfuseManufacturers Part No.: RXEF135
brand-logo
View all in Resettable Fuses

Technical Document

Specifications

Brand

Littelfuse

Trip Current

2.7A

Product Type

Resettable Fuse

Voltage

72 V

Time to Trip

9.6s

Current Rating

40 A

Hold Current

1.35A

Length

14.5mm

Height

19.1mm

Width

3 mm

Minimum Resistance

0.12Ω

Minimum Operating Temperature

-40°C

Maximum Resistance

300mΩ

Maximum Operating Temperature

60°C

Power Dissipation

1.7W

Standards/Approvals

TUV, RoHS, UL, CQC, CSA

Lead Orientation

Radial

Series

RXEF

Product details

PolySwitch™ RXE Series

TE PolySwitch™ RXE represents series of low hold current (down to 50mA) and high voltage rating (up to 72V) devices. Typically used in printers, satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports and peripherals, game machines, phones, fax machines, analog and digital line cards applications.

Current ratings from 50mA to 15A
Voltage ratings from 6V (computer and electronic applications) to 99V
Fast time-to-trip
Low resistance
RoHS compliant
Halogen free

PCB Wire Ended

Stock information temporarily unavailable.

€ 21.41

€ 0.428 Each (Supplied in a Bag) (Exc. VAT)

Littelfuse 1.35 A Resettable Fuse, 72 V
Select packaging type

Production pack (Bag)

Select packaging type

Standard - each

Available in multiples of 10.

Production -

Available in multiples of 10.

Recommended for ordering in large quantities. Items are packaged ready for insertion into machinery, allowing you to improve production efficiency.

50

Available in multiples of 10
50€ 21.41
60€ 25.69
70€ 29.97
80€ 34.25
90€ 38.54
100€ 42.82
110€ 47.10
120€ 51.38
130€ 55.66
140€ 59.94
150€ 64.23
160€ 68.51
170€ 72.79
180€ 77.07
190€ 81.35

€ 21.41

€ 0.428 Each (Supplied in a Bag) (Exc. VAT)

Littelfuse 1.35 A Resettable Fuse, 72 V

Stock information temporarily unavailable.

Select packaging type

Production pack (Bag)

Select packaging type

Standard - each

Available in multiples of 10.

Production -

Available in multiples of 10.

Recommended for ordering in large quantities. Items are packaged ready for insertion into machinery, allowing you to improve production efficiency.

50

Available in multiples of 10
50€ 21.41
60€ 25.69
70€ 29.97
80€ 34.25
90€ 38.54
100€ 42.82
110€ 47.10
120€ 51.38
130€ 55.66
140€ 59.94
150€ 64.23
160€ 68.51
170€ 72.79
180€ 77.07
190€ 81.35

QuantityUnit pricePer Bag
50 - 240€ 0.428€ 4.28
250 - 490€ 0.373€ 3.73
500 - 990€ 0.317€ 3.17
1000+€ 0.276€ 2.76
