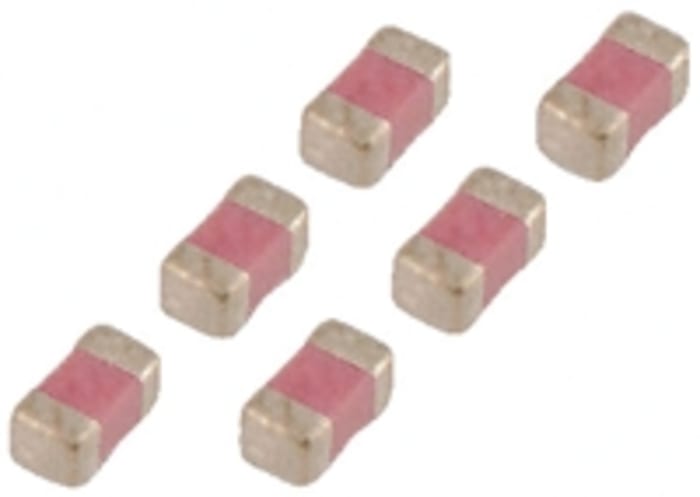

KEMET 100 nF Multilayer Ceramic Capacitor, 16 V dc, ±10 %, Surface Mount
Technical Document
Specifications
Brand
KEMETCapacitance
100nF
Product Type
Multilayer Ceramic Capacitor
Construction
Stacked
Package/Case
0402
Packaging
Paper Tape
Mount Type
Surface Mount
Dielectric
X7R
Tolerance
±10 %
Automotive Standard
No
Minimum Operating Temperature
-55°C
Termination Type
Solder
Series
C
Length
1mm
Height
0.5mm
Standards/Approvals
EIA 481, IPC-7351, J-STD-020
Suppression Class
Class II
Maximum Operating Temperature
125°C
Product details
C Series
Surface Mount Multilayer Ceramic Chip Capacitors, 6.3 – 250 VDC (Commercial Grade)
Temperature stable within the range -55°C to +125°C
Wide range of case sizes, voltage ratings and capacitance values range from 10pF to 47μF
Non-polar device, minimizing installation concerns
100% pure matte Tin-plated termination finish allowing for excellent solderability
Typical applications include decoupling, bypass, filtering and transient voltage suppression
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 13.28
€ 0.027 Each (On a Reel of 500) (Exc. VAT)
Standard
500
€ 13.28
€ 0.027 Each (On a Reel of 500) (Exc. VAT)
Stock information temporarily unavailable.
Standard
500
| Quantity | Unit price | Per Reel |
|---|---|---|
| 500 - 2000 | € 0.027 | € 13.28 |
| 2500 - 4500 | € 0.025 | € 12.71 |
| 5000 - 9500 | € 0.024 | € 12.13 |
| 10000 - 19500 | € 0.024 | € 12.13 |
| 20000+ | € 0.023 | € 11.55 |
