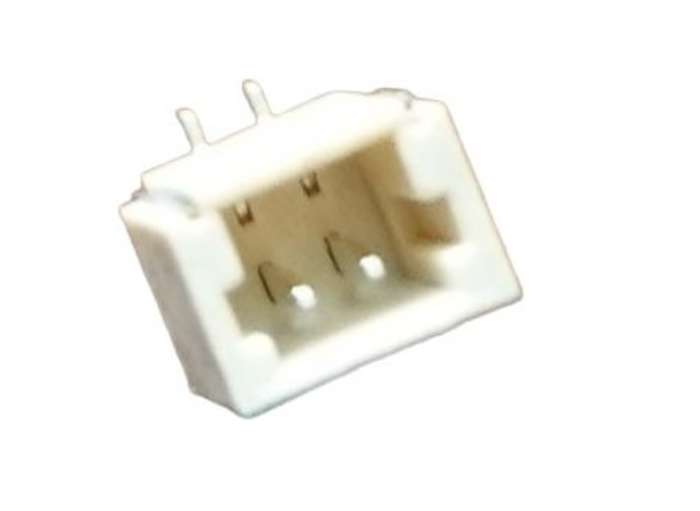

JST SH Series Straight Surface PCB Header, 2 Contact(s), 1 mm Pitch, 1 Row, Shrouded
Technical Document
Specifications
Brand
JSTSeries
SH
Product Type
PCB Header
Current
1A
Pitch
1mm
Housing Material
Polyamide
Number of Contacts
2
Number of Rows
1
Orientation
Straight
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Surface
Contact Material
Copper Alloy
Contact Plating
Tin
Minimum Operating Temperature
-25°C
Row Pitch
1mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
85°C
Standards/Approvals
No
Voltage
50 V
Product details
Top Entry SMT Header
Top entry 1mm pitch SMT headers incorporating solder tabs for additional mechanical support.,Mates with crimp terminal housing typical stock number 311-6502 .
1.0mm Wire to Board - JST SH Series
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 3.80
€ 0.38 Each (In a Pack of 10) (Exc. VAT)
Standard
10
€ 3.80
€ 0.38 Each (In a Pack of 10) (Exc. VAT)
Stock information temporarily unavailable.
Standard
10
