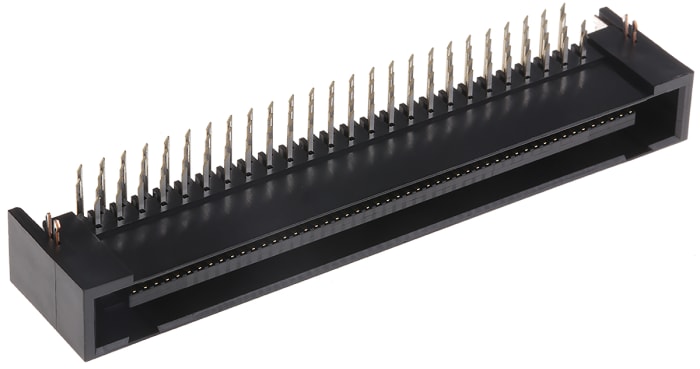

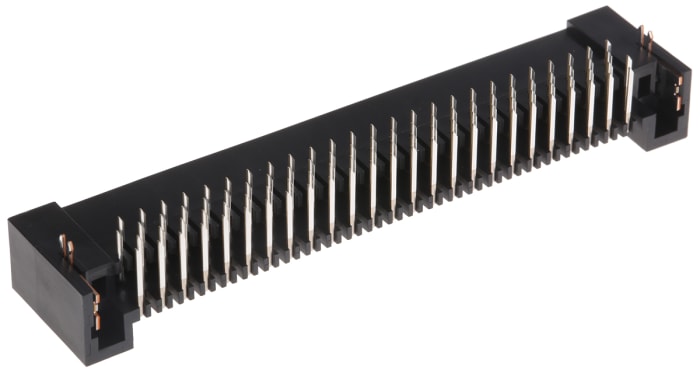

JAE TX25 Series Right Angle Through Hole PCB Header, 100 Contact(s), 1.27 mm Pitch, 2 Row, Shrouded
Technical Document
Specifications
Brand
JAESeries
TX25
Product Type
PCB Header
Pitch
1.27mm
Current
1A
Number of Contacts
100
Housing Material
Polybutylene Terephthalate
Number of Rows
2
Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Mount Type
Through Hole
Connector System
Board-to-Board
Contact Material
Copper Alloy
Contact Plating
Gold
Minimum Operating Temperature
-40°C
Termination Type
Solder
Maximum Operating Temperature
80°C
Standards/Approvals
No
Voltage
500 V
Product details
TX25 Series 90° Connector Plugs
1.27mm Pitch JAE TX24/TX25 Series Connectors
1.27mm Pitch JAE TX24/TX25 Series Connectors long electrical engagement length results in a highly reliable and stable connection. Non-pin type contacts with the connector withstand mating and unmating twisting forces and an excellent "click action" design assures a true connection. The stable housing with polarizing keys is suitable for rack and panel connector applications
