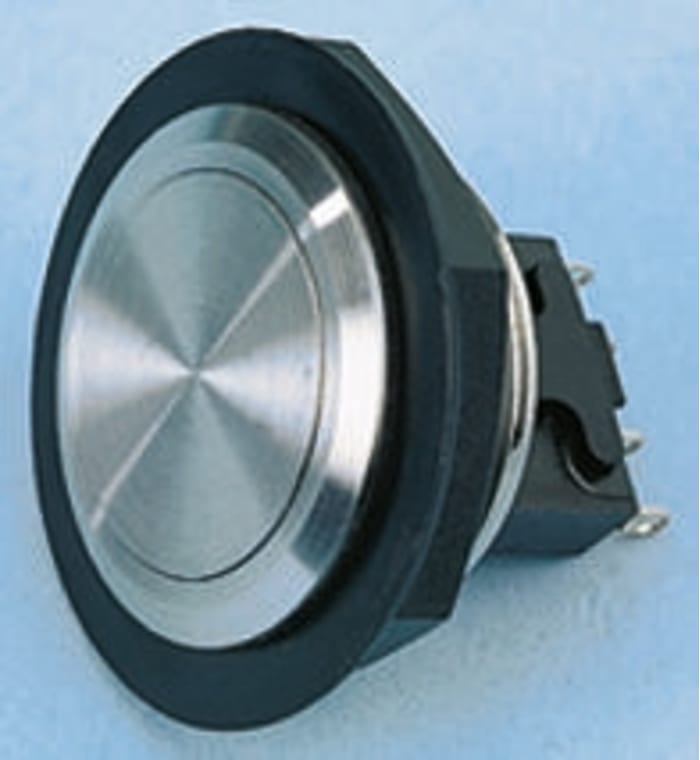

ITW Switches 76-95 Series Push Button Switch, Momentary, Panel Mount, 32mm Cutout, SPDT, Clear LED, 250V ac, IP67
Technical Document
Specifications
Brand
ITW SwitchesSwitch Operation
Momentary
Illuminated
No
Series
76-95
Panel Cut Out Diameter
32mm
Mounting Type
Panel Mount
Push Button Colour
Silver
Contact Configuration
SPDT
Voltage Rating
250V ac
Push Button Style
Round
LED Colour
Clear
IP Rating
IP67
Contact Current Rating
10 A @ 250 V ac
Contact Material
Fine Silver
Contact AC Voltage Rating
250V
Case Colour
Silver
Contact DC Voltage Rating
5V
Manufacturer Part No.
76-9512/4044
Maximum Operating Temperature
+105°C
Terminal Type
Solder
Minimum Operating Temperature
-30°C
Operating Temperature Range
-30 → +105°C
Country of Origin
Belize
Product details
Large Actuation Area Switches
The 76–95 series are best suited to applications where vandal resistance is a necessity and have been designed to withstand a high degree of impacts. The body and buttons of the switch have been machined from hard-wearing stainless steel.
They have a panel sealed IP67 rating and come in either front mount or rear mount versions. Both types have been designed to reduce the possibility of a vandal forcing an object behind the switch to lever it from its mounting.
They are momentary action and have solder terminals at the rear of the switch. Terminals are tin plated bass with a nickel lash undercoat. The contacts are made of a fine silver material helping to prolong life and increase reliability.
IP67 sealed with microswitch action for use in harsh environments
The flush mounting with low profile and the large actuation area make this unit ideal for public usage
Momentary action n/o + n/c contacts
Contact Rating: 10A / 250Vac; 5A / 28Vdc
€ 43.20
€ 43.20 Each (Exc. VAT)
1
€ 43.20
€ 43.20 Each (Exc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 43.20 |
| 5 - 9 | € 41.03 |
| 10 - 14 | € 39.74 |
| 15 - 19 | € 38.88 |
| 20+ | € 38.02 |
