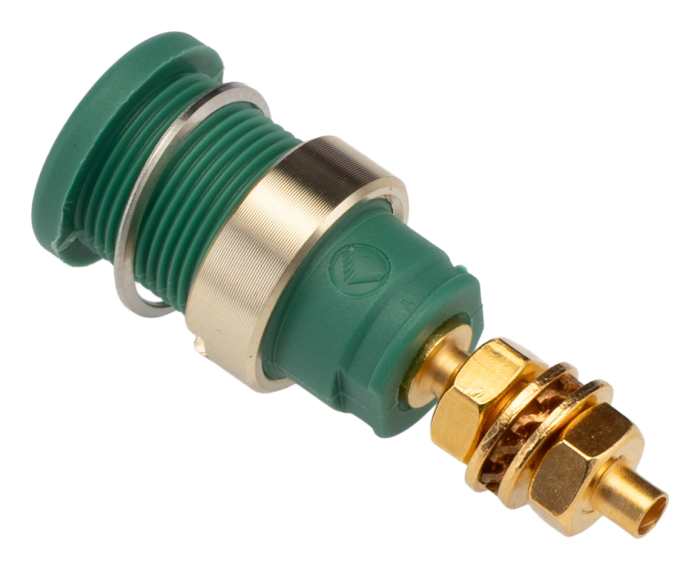

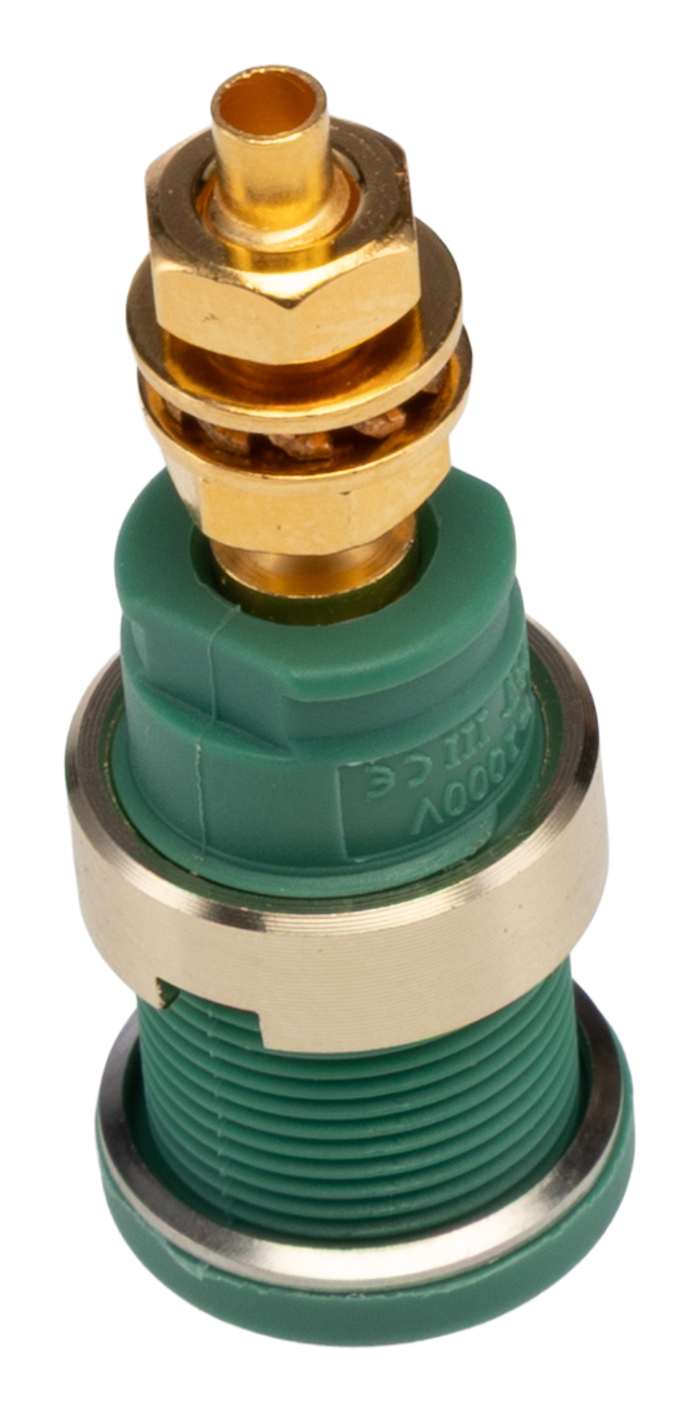

Hirschmann Test & Measurement Green Female Banana Socket, 4 mm Connector, Solder Termination, 1000V ac/dc, 32A, Gold

Name: Hirschmann Test & Measurement Green Female Banana Socket, 4 mm Connector, Solder Termination, 1000V ac/dc, 32A, Gold
Brand: Hirschmann Test & Measurement
SKU: 0737847
Availability: LimitedAvailability

RS Stock No.: 737-847Brand: Hirschmann Test & MeasurementManufacturers Part No.: 972354104Distrelec Article No.: 140-22-419

View all in Banana Connectors

Technical Documents

Specifications

Brand

Hirschmann Test & Measurement

Product Type

Banana Socket

Colour

Green

Gender

Female

Termination Method

Solder

Current

32A

Voltage

1000V ac/dc

Connector Size

4 mm

Contact Plating

Gold

Length

39mm

Connector Type

Banana Socket

Contact Material

Brass

Standards/Approvals

CATII, IEC 61010

Country of Origin

Germany

Product Details

SEB 2600 G CAT II M4 4mm Safety Test Sockets

Hirschmann Test and Measurement SEB 2600 G M4, CAT III 4mm gold plated brass chassis mount touch protected safety test sockets, M12 threaded plastic body (PA) and M4 threaded termination with solder connection. These SEB 2600 G M4 4mm test sockets are ideal for installation in equipment chassis and switch panels with a wall thickness of to up 6mm, installation hole required is 12.2mm in diameter.

Length: 38.5 mm
Mounting hole Ø: 12 mm
4 mm safety panel socket
M4 screw connection
For installation in control panels and unit chassis up to a maximum wall thickness of 6 mm
Installation opening: Ø 12.2 mm
Connection type: Screws/soldering
CATII, IEC61010
