Hartmann, 10 Position, BCD Rotary Switch, 100 mA @ 42 V dc, Solder
Technical Document
Specifications
Brand
HartmannContact Current Rating
100 mA @ 42 V dc
Number of Switch Positions
10
Number of Contacts
6
Voltage Rating
42V
Output Coding
BCD
Diameter
13mm
Dimensions
13 (Dia.) x 5mm
Mounting Type
PCB
Terminal Type
Solder
Application
Test and Instrumentation Switches
Maximum Operating Temperature
+125°C
Height
5mm
Legend Text Colour
White
Minimum Operating Temperature
-50°C
Mechanical Life
25000Cycles
Legend Text
0-9
Country of Origin
Germany
Product details

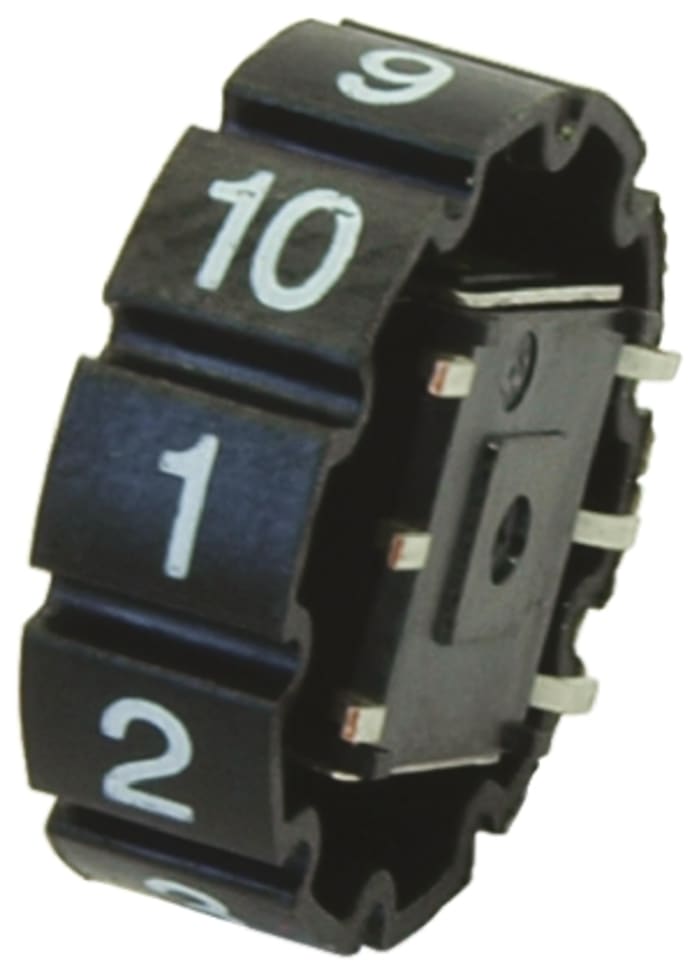

DH1 Series Thumb Wheel Switch
Hartmann Thumbwheel Switches available with or without the starwheel operating crown.
Right and left PCB mount available
Available with 0-9 or 1-10 numbering
Reflow soldering max: 10 seconds at 260°C
