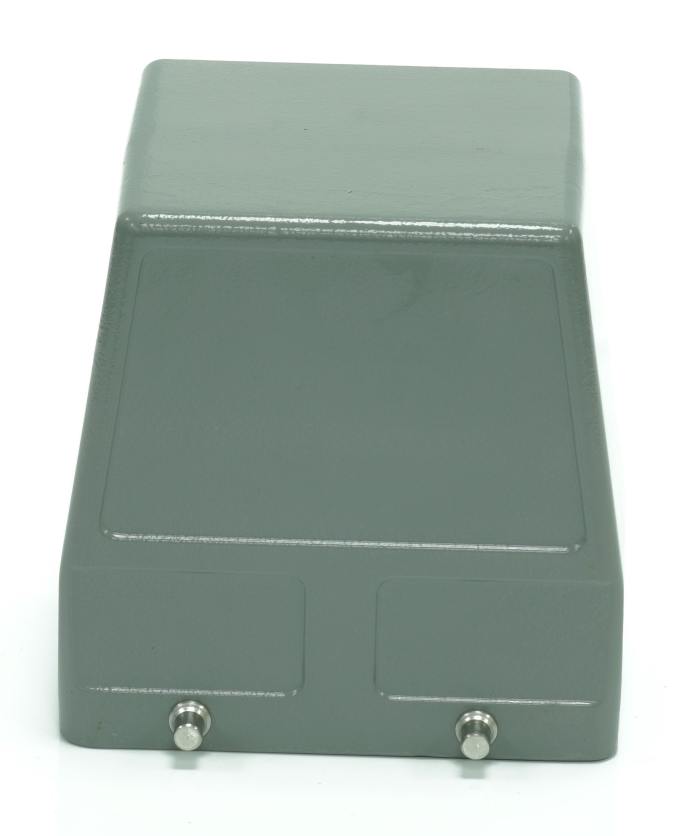

HARTING 1930 Range Heavy Duty Power Connector Hood 4, 32B
Technical Document
Specifications
Brand
HartingProduct Type
Heavy Duty Power Connector Hood
Sub Type
Connector Hood
Locking Type
Double Lever
Series
1930
Manufacturer Size Code
32B
Body Material
Die Cast Aluminium
IP Rating
IP65
Standards/Approvals
UL / CSA, UL 1977 ECBT2.E235076, DNV GL, CSA-C22.2 No. 182.3 ECBT8.E235076
Cable Entry Angle
Side
Thread Size
M32
Number of Levers
4
Country of Origin
Germany
Product details
Hoods and Housing 32B
Two locking levers on housings
Cable gland available separately, see stock no. 313-6477 (typical of range)
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
Approvals
UL, CSA, SEV
Range 9 - (Harting Size 32B)
These hoods and housings are compatible with appropriate inserts from the Han D®, DD, E, EE, HsB, Com and Modular series. The 'compatibility' table associated with item type 1 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.
Stock information temporarily unavailable.
€ 77.76
€ 77.76 Each (Exc. VAT)
1
€ 77.76
€ 77.76 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 77.76 |
| 10 - 24 | € 75.43 |
| 25 - 49 | € 73.17 |
| 50+ | € 71.07 |
