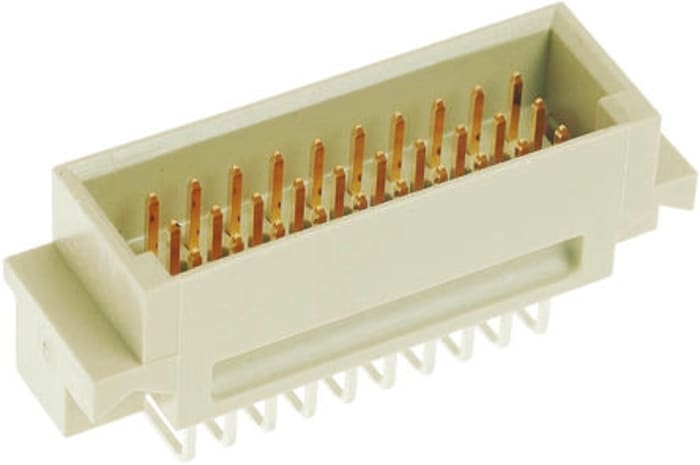

HARTING DIN 41612 30 Way 2.54 mm Pitch, Type Through Hole, Type 3C, Type Solder Class Class C2, 3 Row Male, Right Angle
Technical Document
Specifications
Brand
HartingNumber of Contacts
30
Product Type
DIN 41612 Connector
Number of Rows
3
Current
2A
Orientation
Right Angle
Connector Gender
Male
Row Loading
A/B/C
Sub Type
3C
Termination Type
Solder
Pitch
2.54mm
Contact Plating
Gold over Nickel
Mount Type
Through Hole
Class
Class C2
Minimum Operating Temperature
-55°C
Contact Gender
Male
Maximum Operating Temperature
125°C
Standards/Approvals
No
Contact Material
Copper Alloy
Maximum Contact Resistance
15mΩ
Series
DIN 41612
Housing Material
Thermoplastic
Country of Origin
Germany
Product details
Type 3C Connectors
Performance level 2 as per IEC 60603-2
Straight or right-angled versions available
DIN41612 - Harting Range
DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 52.63
€ 2.63 Each (Supplied in a Box) (Exc. VAT)
Production pack (Box)
20
€ 52.63
€ 2.63 Each (Supplied in a Box) (Exc. VAT)
Stock information temporarily unavailable.
Production pack (Box)
20
| Quantity | Unit price |
|---|---|
| 20 - 74 | € 2.63 |
| 75 - 299 | € 2.22 |
| 300 - 599 | € 2.04 |
| 600+ | € 1.89 |
