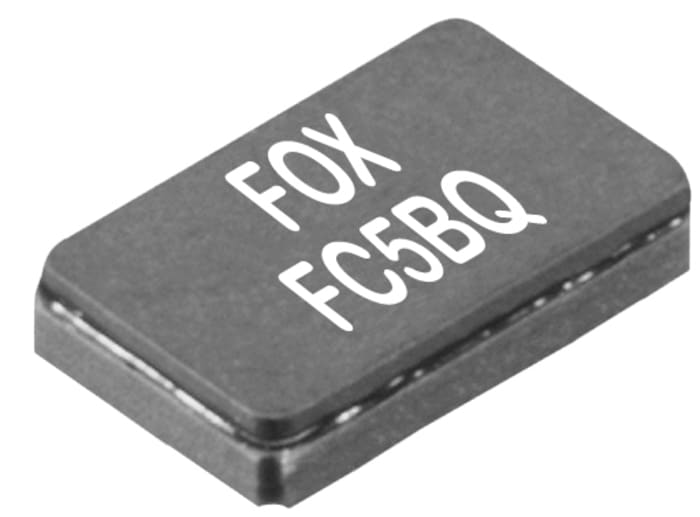

Fox Electronics 12MHz Crystal ±30ppm SMD 4-Pin 5 x 3.2 x 1.2mm

RS Stock No.: 648-0165PBrand: Fox ElectronicsManufacturers Part No.: FQ5032B-12.000
brand-logo
View all in Crystal Units

Technical Document

Specifications

Brand

Fox Electronics

Standard Frequency

12MHz

Mounting Type

Surface Mount

Load Capacitance

10pF

Package Type

SMD

Pin Count

4

Length

5mm

Width_SC_PC

3.2mm

Height

1.2mm

Dimensions

5 x 3.2 x 1.2mm

Frequency Tolerance

±30ppm

Frequency Stability

±30ppm

Series Resistance

80Ω

Maximum Operating Temperature

70°C

Minimum Operating Temperature

0°C

Country of Origin

China

Product details

FQ5032B

Crystals 5x3.2mm Ceramic case
