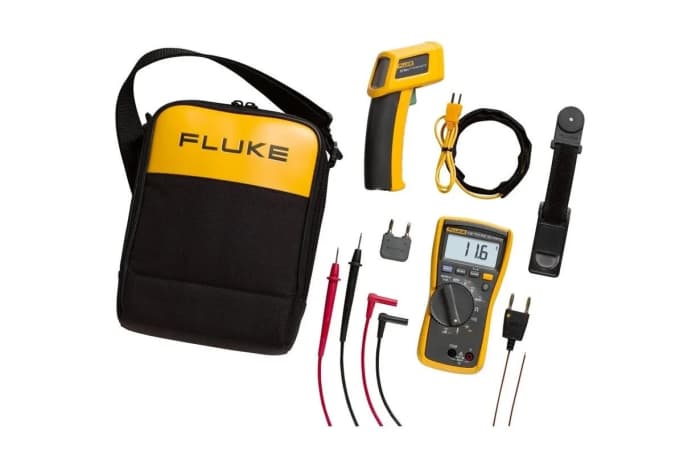

Fluke 116 Digital Digital Multimeter True RMS, 600 μA ac, 600 μA dc, 600 V ac

Name: Fluke 116 Digital Digital Multimeter True RMS, 600 μA ac, 600 μA dc, 600 V ac
Brand: Fluke
SKU: 6161476
Availability: LimitedAvailability

RS Stock No.: 616-1476Brand: FlukeManufacturers Part No.: FLUKE-116 EURDistrelec Article No.: 176-05-439

View all in Multimeters

Technical Document

Specifications

Brand

Fluke

Product Type

Multimeter

Multimeter Type

Digital

Resistance Resolution

100mΩ

Model Number

116

Display Type

Digital

Functions Measured

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature

Maximum DC Voltage Measurement

600V dc

Maximum DC Current Measurement

600μA dc

Maximum AC Current Measurement

600μA ac

Maximum Resistance Measurement

40mΩ

Maximum AC Voltage Measurement

600V ac

True RMS

Yes

AC Voltage Accuracy

±1 % rdg + 3 Digits

DC Current Accuracy

±1 % rdg + 2 Digits

AC Current Accuracy

±1.5 % rdg + 3 Digits

DC Voltage Accuracy

±0.5 % rdg + 2 Digits

AC Voltage Resolution

0.1mV ac

DC Voltage Resolution

0.1 mV dc

AC Current Resolution

0.1μA ac

DC Current Resolution

0.1μA dc

Maximum Frequency

1kHz

Minimum Operating Temperature

-10°C

Resistance Measurement Accuracy

±1.5 % rdg + 2 Digits

Maximum Operating Temperature

50°C

Battery Life

400h

Height

167mm

Length

46mm

Weight

550g

Standards/Approvals

Width

84mm

Safety Category Level

CAT III

Battery Type

Alkaline

Safety Category Voltage

600V

Product details

Fluke 16 True RMS HVAC Digital Multimeter with Built-In Thermometer

The Fluke 16 Digital Multimeter is designed to function like a standard Multimeter and exclusive HVAC modes, unlike other models in the Fluke 10 series, the Fluke 116 comes with a built-in thermometer, allowing engineers to measure temperature and microamp mode for testing flame sensors to quickly troubleshoot problems for HVAC applications. The Fluke 116 measures resistance, continuity, frequency and capacitance. The Fluke 116 Multimeter are independently tested for safe use in CAT III 600 V Environments.

Why buy the Fluke 116 Digital Multimeter?

• VoltAlertTM Technology for intergrated non-contact voltage detection
• AutoVolt feature for automatic AC/DC voltage selection
• LoZ: Low input impedance to eliminate stray voltage ensures that ghost voltages don’t have an effect on readings
• Large white LED backlight, perfect for when you’re working in darkened areas
• True RMS meanng it will maintain its accuracy when testing on irregular AC connections
• Min/Max/Average to record signal fluctuations
• Current measurement 20A (30 seconds momentary; 10A continuous)
• Resistance , continuity, frequency and capacitance testing capability

Fluke 116 HVAC Digital Multimeter key benefits?

• Compact, Ergonomic design and can be used with one hand
• Built-in thermometer allows Temperature measurement from -40°C to +400°C using the Type K thermocouple input adaptor
• Capacitance up to 10000μF to test motor start and run capacitors
• Microamp current range for flame sensor measurement down to μA
• 4000 count auto ranging Multimeter
• 40MΩ resistance range
• 33 segment analogue bargrapgh on display
• Diode test
• Continuity test
• V-Check™ mode for safety. Automatically switches from ohm/continuity mode to measure ac or dc volts when voltages above 4.5V are present at the input
• Min/Max recording with elapsed time (ideal for recording signal fluctuations)
• Continuity capture symbolically displays open and short circuits as brief as 250μs
• Meets IEC1010-1 (safety standard) CAT III 600V
• Replacement type K thermocouple available separately accepts other type K thermocouple sensors with subminiature connectors (see accessories)

What are the typical Applications for the Fluke 116 Digital Multimeter?

The Fluke 116 model is built for engineers who work in the HVAC environment (heating, ventilation and air conditioning)

Additional Specification

• DC Voltage Accuracy: 0.5% +2d
• AC Voltage Accuracy: 2.0% +3d
• DC Current Accuracy 1.0% +2d
• AC Current Accuracy 1.5% +3d
• Resistance Accuracy: 1.5% +2d
• Diode Test Range: 2.000V
• Diode Test Resolution: 0.001V
• Diode Test Accuracy: 0.9% +2d
• Capacitance Accuracy: 1.9% +2d
• Temperature Resolution 0.1C
• Temperature Accuracy 1% +10d
• Display Count 6000
• Display Update 4/sec
• Bar Graph Segments 33
• Bar Graph Update 32/sec
• Please note accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %."

Does the Fluke 116 come with a warranty?

The Fluke 116 comes with a 3 year warranty giving engineers the peace of mind

Standards

From Fluke, the 116 is designed for heating, ventilation and air conditioning (HVAC) engineers. The model includes temperature measurement and microamp current ranges to quickly troubleshoot HVAC problems.
