Euro-Locks a Lowe & Fletcher group Company Spanner Lock, 25.6mm Panel-to-Tongue, 23 x 20.2mm Cutout, Square Head Unlock
Technical Document
Specifications
Unlock Method
Square Head
Panel To Tongue Depth
25.6mm
Panel Cut Out Diameter
23mm
Panel Cut Out
23 x 20.2mm
Panel Cut Out Length
20.2mm
Panel Cut Out Width
20.2mm
IP Rating
IP65
Country of Origin
France
Product details

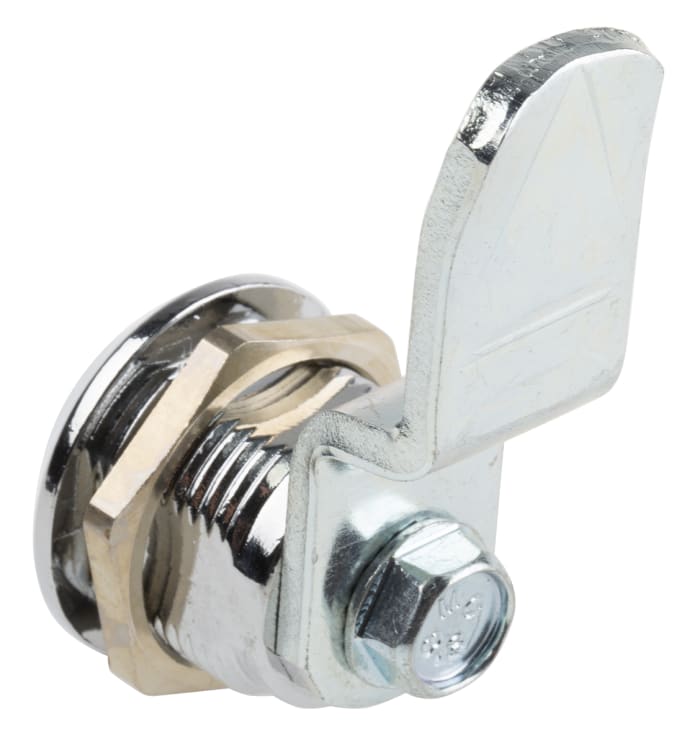

Lowe & Fletcher F185-02-2 Sealed Spanner Lock
IP65 sealed spanner lock An effective lock mechanism comprising various forms of cylinders:
322-2427 : 6 mm square
322-2405 : 8 mm square
322-2455 : 8 mm triangle
451-1469 : 5 mm double bar
Features and Benefits
The cam features a compression fit and operates through an angle of 90°.
This spanner lock is supplied with a 0.3 mm thick nitrile head gasket and nut to be fitted on panels up to 10 mm thick; bright chrome-plated finish.
Panel to tongue depth 16mm
Note
Operating keys supplied separately
Stock information temporarily unavailable.
Please check again later.
€ 5.97
Each (Exc. VAT)
1
€ 5.97
Each (Exc. VAT)
1
Buy in bulk
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 5.97 |
| 5 - 9 | € 5.70 |
| 10 - 29 | € 5.44 |
| 30+ | € 5.16 |
