EPCOS, Standard Metal Oxide Varistor 3.2nF 5A, Clamping 77V, Varistor 39V
Technical Document
Specifications
Brand
EpcosVaristor Voltage
39V
Maximum AC Voltage Rating
25V
Maximum DC Voltage Rating
31V
Clamping Voltage
77V
Clamping Current
5A
Material
Metal
Energy
3.7J
Series
Standard
Diameter
12mm
Maximum Surge Current
500A
Capacitance
3.2nF
Thickness
4.2mm
Dimensions
12 (Dia.) x 4.2mm
Lead Pitch
7.5mm
Country of Origin
China
Product details

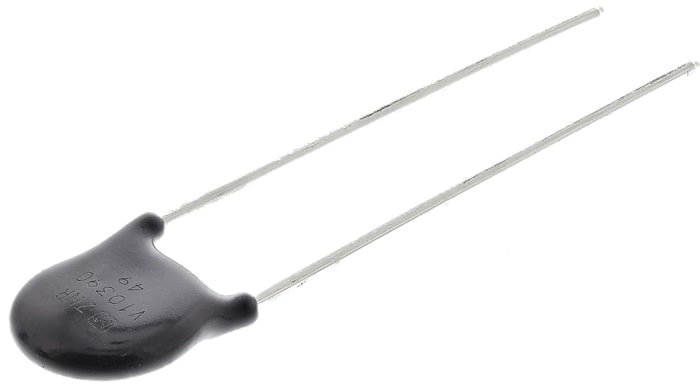

Metal Oxide Varistors Standard Series
Standard radial epoxy-coated MOV with tinned-copper leads.
Tinned copper wire leads with a ceramic body coated with epoxy resin
Rated for surge current (8//20 μs) and for energy (2ms)
Approvals
UL, CSA, VDE
