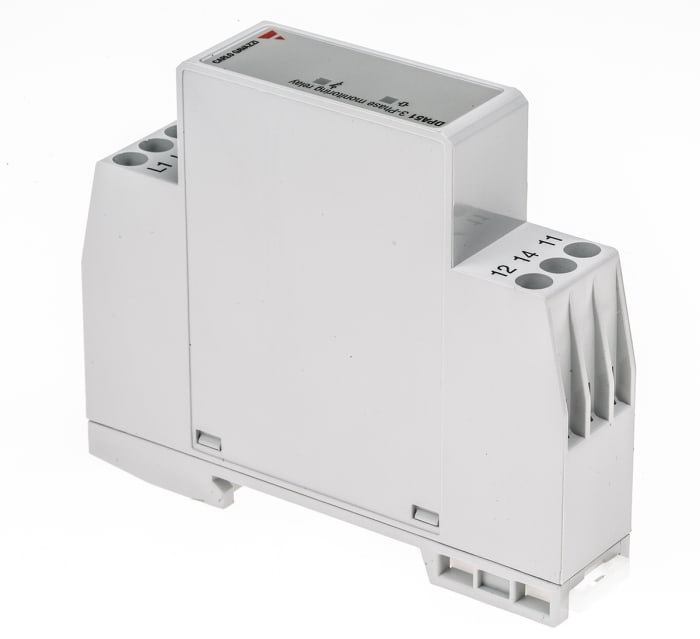

Carlo Gavazzi Phase, Voltage Monitoring Relay, 3 Phase, SPDT, 177 → 550V ac, Plug In
Technical Document
Specifications
Brand
Carlo GavazziMonitoring Application
Phase, Voltage
Electrical Phase
3
Voltage Sensing Range
177 → 550V ac
Contact Configuration
SPDT
Mounting Type
Plug In
Phase Sensitivity
Phase Loss, Phase Sequence
Series
DPA01
Dimensions
99.5 x 22.5 x 80mm
Width
22.5mm
Maximum Voltage Sensed
550V ac
Height
80mm
Length
99.5mm
Minimum Voltage Sensed
177V ac
Minimum Operating Temperature
-20°C
Country of Origin
Italy
Product details
Over Voltage - Over Current Monitoring Relay
Monitoring relays from Carlo Gavazzi can also be used as 1-phase or 3- phase over current monitoring relays when connected with MI or MP current transformers.Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.
AC/DC over voltage monitoring relay
Selection of measuring range by DIP-switches
Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,
20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC
Adjustable voltage limit on relative scale
Adjustable hysteresis
Programmable latching at set level
Output: 8 A SPDT relay normally de-energized
LED indication for relay and power supply ON
Galvanically separated power supply
Panel and screw termination options available
Stock information temporarily unavailable.
Please check again later.
€ 134.17
Each (Exc. VAT)
1
€ 134.17
Each (Exc. VAT)
1
Buy in bulk
| Quantity | Unit price |
|---|---|
| 1 - 2 | € 134.17 |
| 3+ | € 128.73 |
