C & K DPDT, On-(On) Rocker Switch Panel Mount

Name: C & K DPDT, On-(On) Rocker Switch Panel Mount
Brand: C & K
SKU: 1791050
Availability: LimitedAvailability

RS Stock No.: 179-1050Brand: C & KManufacturers Part No.: 7201J51ZQE22Distrelec Article No.: 30259176

View all in Rocker Switches

Technical Document

Specifications

Brand

C & K

Contact Configuration

DPDT

Switch Operation

On-(On)

Panel Cut Out Width

20.32mm

Panel Cut Out Height

12.7mm

Contact Current Rating

2 A

Illuminated

Actuator Colour

Black

Mounting Type

Panel Mount

IP Rating

IP00

Terminal Type

Solder

AC Voltage Rating

250V

Actuator Shape

Rectangular

DC Voltage Rating

28V

Case Material

Stainless Steel

Contact Material

Silver Plated Silver Alloy

Minimum Operating Temperature

-30°C

Contact Resistance

10mΩ

Operating Temperature Range

-30 → +85°C

Maximum Operating Temperature

+85°C

Product details

Rocker Switches

Snap-in Panel Mount
Series of single or double pole rocker switches
Centre off and non centre off versions available
Fitted on a panel in a 12.7x15.25 mm cut-out with a maximum thickness of 3.18 mm
A 5 mm Led clamp is available for mounting beside the switches
To ensure effective mounting a frame and clip should be used
Silver contacts
Contact Rating-A 2A
Contact Rating-V 250Vac; 5A @ 28 Vdc

You may be interested in

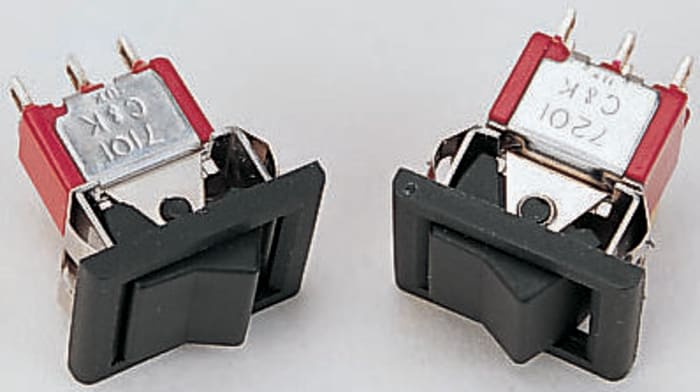

C & K SPDT, Latching Rocker Switch Panel MountBrand: C & K
