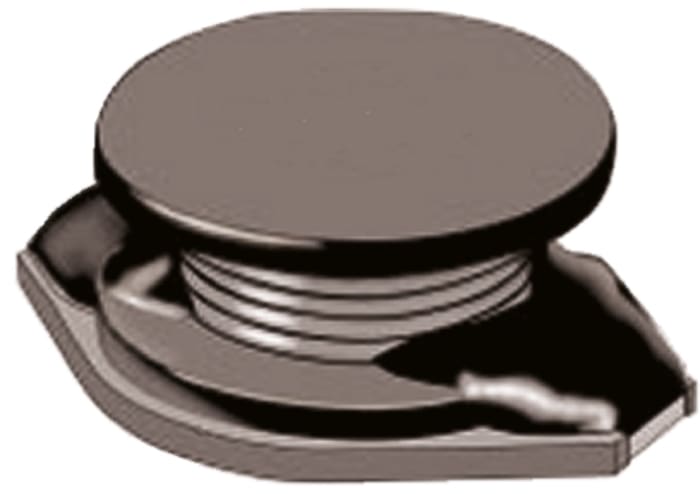

Bourns, SDR1005, 1005 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 220 μH ±10% Wire-Wound 700mA Idc Q:50
Technical Document
Specifications
Brand
BournsInductance
220 μH
Maximum dc Current
700mA
Package/Case
1005
Length
12.7mm
Depth
10mm
Height
5mm
Dimensions
12.7 x 10 x 5mm
Shielded
No
Tolerance
±10%
Maximum DC Resistance
780mΩ
Series
SDR1005
Core Material
Ferrite DR
Maximum Self Resonant Frequency
5MHz
Minimum Quality Factor
50
Inductor Construction
Wire-Wound
Maximum Operating Temperature
+125°C
Minimum Operating Temperature
-40°C
Product details
SDR1005 Series Wire Wound Chokes
Available in E6 series
Low profile of only 5.0mm
Inductance as low as 0.68μH
RoHS compliant
Applications in input/output of DC/DC Converters, Power Supplies
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 3.68
€ 0.735 Each (In a Pack of 5) (Exc. VAT)
Standard
5
€ 3.68
€ 0.735 Each (In a Pack of 5) (Exc. VAT)
Stock information temporarily unavailable.
Standard
5
Stock information temporarily unavailable.
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 245 | € 0.735 | € 3.68 |
| 250 - 495 | € 0.504 | € 2.52 |
| 500 - 995 | € 0.435 | € 2.18 |
| 1000 - 2495 | € 0.389 | € 1.95 |
| 2500+ | € 0.348 | € 1.74 |
