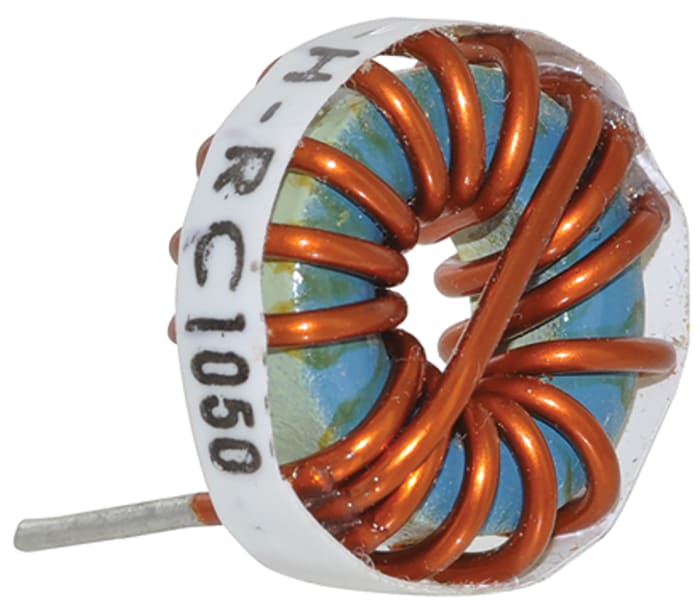

Bourns 220 μH ±15% Toroidal Inductor, 2.4A Idc, 120mΩ Rdc, 2100

RS Stock No.: 736-0949Brand: BournsManufacturers Part No.: 2116-V-RC
brand-logo
View all in Leaded Inductors

Technical Document

Specifications

Brand

Bourns

Inductance

220 μH

Maximum dc Current

2.4A

Mounting Type

Radial

Maximum DC Resistance

120mΩ

Tolerance

±15%

Diameter

21.84mm

Depth

0.45in

Height

11.43mm

Dimensions

21.84 (Dia.) x 11.43mm

Lead Pitch

8.636mm

Series

2100

Minimum Operating Temperature

-55°C

Terminal Type

Radial Leaded

Maximum Operating Temperature

+105°C

Lead Diameter

0.6858mm

Country of Origin

Honduras

Product details

Bourns 2100 Series Radial Chokes

DC/DC converter, EMI filter applications
Low radiation
Low core loss
High current capacity
Horizontal or Vertical mount
Product Size 21.8mm Outside Diameter, 11.4mm Thick
Operating temperature -55 to +105°C

Bourns Leaded Inductors (Chokes)
