Bosch Rexroth, R900567512 Directional Control Valve, DIN 230V

Name: Bosch Rexroth, R900567512 Directional Control Valve, DIN 230V
Brand: Bosch Rexroth
SKU: 2560273
Availability: LimitedAvailability

RS Stock No.: 256-0273Brand: Bosch RexrothManufacturers Part No.: R900567512

View all in Hydraulic Directional Control Valves

Technical Documents

Specifications

Brand

Bosch Rexroth

Product Type

Directional Control Valve

Number of Positions

Number of Ports

Mount Pattern

DIN

Solenoid Type

Double

Voltage

230V

Seal Material

Nitrile Butadiene Rubber

Series

Maximum Flow Rate

80L/min

Valve Maximum Operating Pressure

350bar

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

80°C

Standards/Approvals

NFPA T3.5.1 R2-2002 D03, ISO 4401-03-02-0-05, DIN 24340

Country of Origin

Romania

Product Details

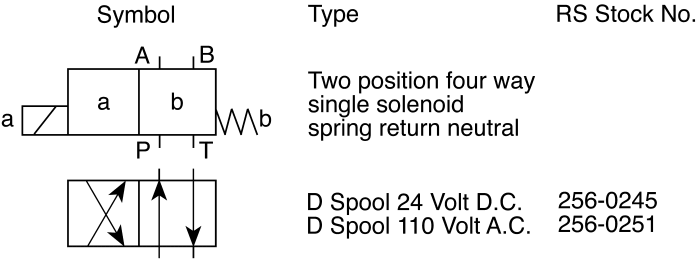

Solenoid Operated Directional Spool Valves, CETOP 3, Size 6

6X Series direct operating, spring return and detent directional control spool valves.

Solenoid operated by a 24Vdc or 110Vac power supply
Porting Pattern to CETOP 3 size 6 for subplate mounting
Wet pin dc or ac removable solenoids can be rotated through 90° to facilitate installation
Connections to DIN 24 340 Form A6 ISO 4401-AB-03-4-A
Emergency hand operation
Seal kit available separately
Coils can be replaced without releasing any fluid
Replacement solenoid coils 24Vdc and 110Vac are available separately

Notes

Take care to prevent pressure intensification in single rod cylinders.

Solenoid Operated Directional Spool Valves, CETOP 3, Size 6

6X Series direct operating, spring return and detent directional control spool valves.

Solenoid operated by a 24Vdc or 110Vac power supply
Porting Pattern to CETOP 3 size 6 for subplate mounting
Wet pin dc or ac removable solenoids can be rotated through 90° to facilitate installation
Connections to DIN 24 340 Form A6 ISO 4401-AB-03-4-A
Emergency hand operation
Seal kit available separately
Coils can be replaced without releasing any fluid
Replacement solenoid coils 24Vdc and 110Vac are available separately

Notes

Take care to prevent pressure intensification in single rod cylinders.
