APEM DPST, On-Off Rocker Switch Panel Mount
Technical Document
Specifications
Brand
ApemContact Configuration
DPST
Switch Operation
On-Off
Panel Cut Out Width
21.08mm
Panel Cut Out Height
36.8mm
Contact Current Rating
5 A
Illuminated
No
Mounting Type
Panel Mount
IP Rating
IP68
Terminal Type
Quick Connect, Solder
DC Voltage Rating
24V
Panel Cut Out Size
36.8 x 21.08mm
Actuator Shape
Rectangular
Case Material
Nylon 66
Contact Material
Silver
Minimum Operating Temperature
-40°C
Contact Resistance
10mΩ
Operating Temperature Range
-40 → +85°C
Mechanical Life
150000Operations
Maximum Operating Temperature
+85°C
Country of Origin
France
Product details

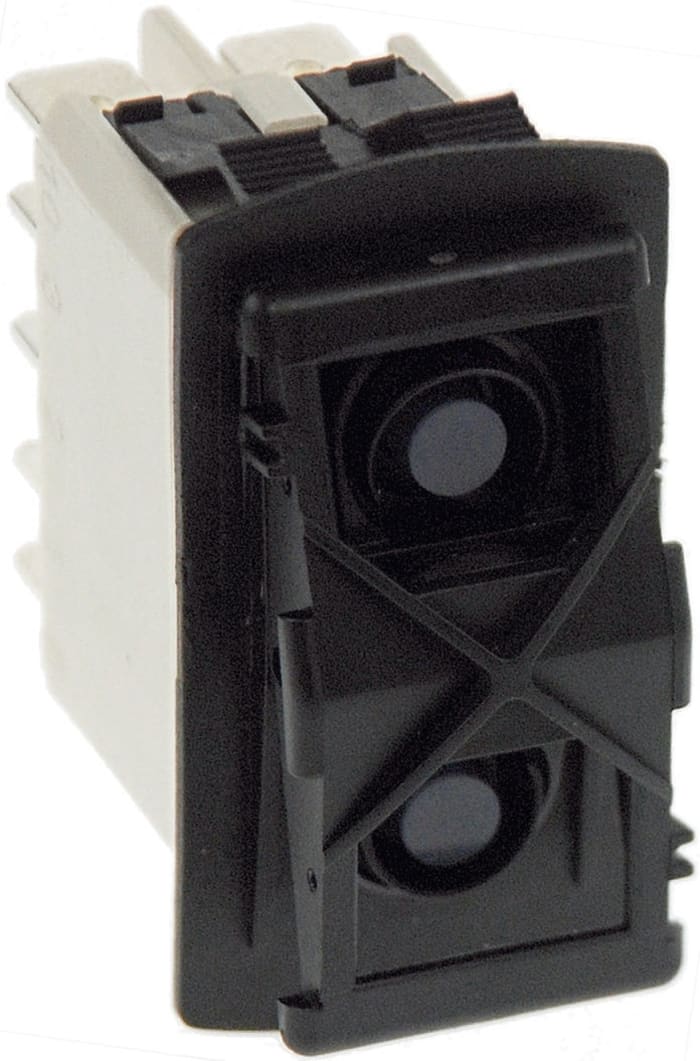

KR Rocker Cases - Double Pole
Double pole 10A/24Vdc 'snap-in' rocker switch cases, fitted with 6.35x0.8mm quick connect terminals
Available in non illuminated or LED illuminated versions (with 12V or 24V red, green or amber single or twin LED's)
A large variety of switch configurations and actuator colours/markings available
Suitable actuators should be ordered separately (see typically 507-267 and range)
To facilitate wiring harness preparation and quick panel assembly, all double pole switch cases can also be used with rear crimp connector housing 507-576, accepting up to 10 crimps terminals (except for 507-431, which can be used with connector housing 507-560)
Other accessories include switch case housings 507-611 & 507-615, panel blanking plugs 507-318 and actuator removal tool 507-312
Switch case panel knockout 36.80x21.08mm
Operating Temperature -40 to +85 °C
Contact Resistance 10 mΩ
Dielectric Strength 2,000 Vrms 50 Hz min. between terminals
IP68 Modular KR Series
