Technical Documents
Specifications
Brand
ams OSRAMPeak Wavelength
515nm
Product Type
Laser Diode
Laser Type
Continuous Wave
Optical Output Power
30mW
Number of Pins
3
Mount Type
Through Hole
Laser Colour
Green
Maximum Current
200mA
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
60°C
Length
10mm
Diameter
3.8mm
Standards/Approvals
IEC60810, IEC 60825-1
Height
3.15mm
Reverse Voltage
2V
Series
PL 520
Maximum Supply Voltage
8V
Automotive Standard
No
Minimum Supply Voltage
6.5V
Package Type
TO-38
Product Details

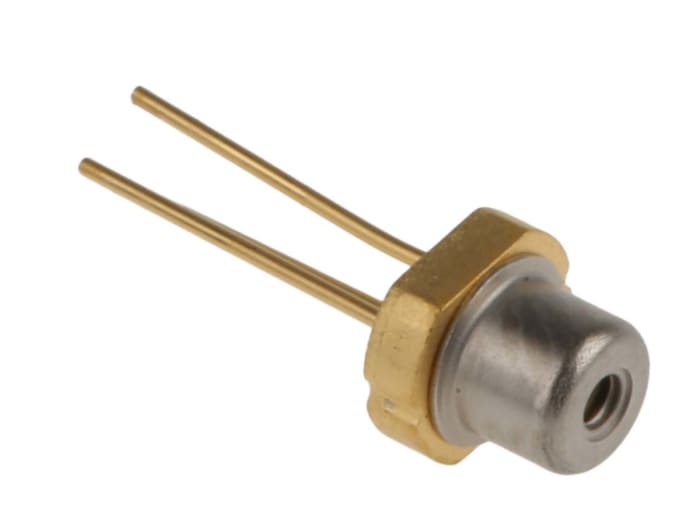

This family of green laser diodes, from OSRAM Opto Semiconductors, are in TO-38 Icut packages. These single mode lasers have a Wavelength of 520nm. Suitable applications for the TO-38 green laser diodes include; laser projection, laser shows, biomedical applications, holography and metrology.
Stock information temporarily unavailable.
€ 23.54
€ 23.54 Each (Exc. VAT)
Standard
1
€ 23.54
€ 23.54 Each (Exc. VAT)
Stock information temporarily unavailable.
Standard
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 23.54 |
| 25 - 49 | € 23.07 |
| 50 - 99 | € 22.63 |
| 100 - 199 | € 22.17 |
| 200+ | € 14.81 |
