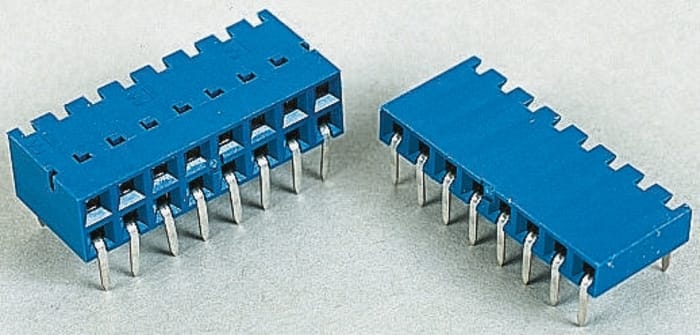

Amphenol Communications Solutions Dubox Series Right Angle Through Hole PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch
Technical Document
Specifications
Number of Contacts
20
Product Type
PCB Socket
Number of Rows
2
Sub Type
Socket Strip
Pitch
2.54mm
Current
12A
Housing Material
Glass Filled Thermoplastic
Termination Type
Solder
Mount Type
Through Hole
Orientation
Right Angle
Connector System
Board-to-Board
Voltage
1 kV
Series
Dubox
Minimum Operating Temperature
-65°C
Row Pitch
2.54mm
Contact Material
Bronze
Contact Plating
Matt Tin
Maximum Operating Temperature
125°C
Standards/Approvals
No
Country of Origin
France
Product details
Dubox Horizontal PCB Receptacles
The Dubox Board to Board Double Row PCB Receptacles have a pre-stressed dual beam design contact for low insertion force. The contact platings for these Dubox Board to Board PCB Horizontal Receptacles is Tin all over.
Rated at 3A/1000V
Operating temperature range -65 to +125°C
Insulation resistance 105 MΩ
Flammability rating UL94 V-0
Amphenol FCI 2.54mm Dubox Series Interconnection System
