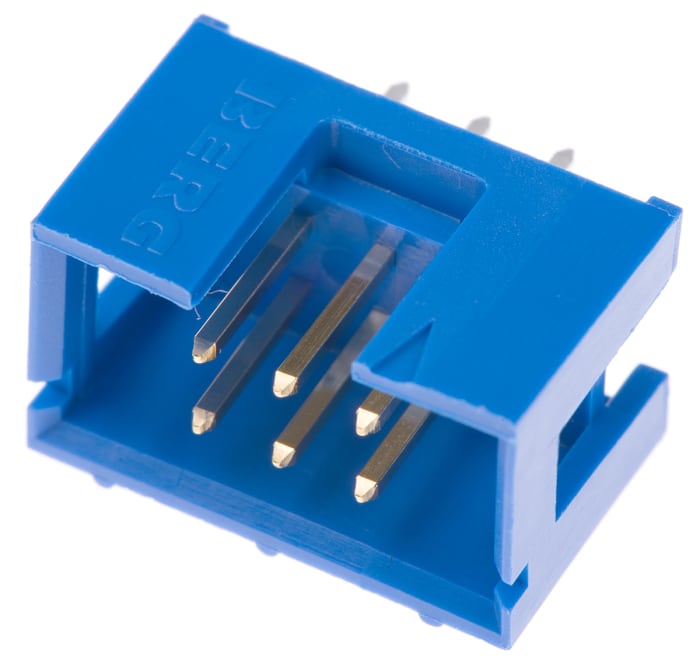

Conector macho para PCB Amphenol Communications Solutions serie Quickie de 6 vías, 2 filas, paso 2.54mm, para soldar,
Documentos Técnicos
Especificaciones
Series
Quickie
Espaciado
2.54mm
Número de Contactos
6
Número de Filas
2
Orientación del Cuerpo
Straight
Recubierto/No Recubierto
Recubierto
Connector System
Wire to Board
Tipo de montaje
Through Hole
Método de Terminación
Soldador
Chapado del Contacto
Gold
Material del Contacto
Bronce Fosforado
Valor Nominal de Corriente
3.0A
Índice de Tensión
500.0 V.
País de Origen
France
Datos del producto
Double Row Through Hole Header, Straight
This range of 2.54 mm pitch Quickie Shrouded Header Pins are PdNi with Gold Flash on contact area and Matte Tin on PCB Tails. These 2.54 mm pitch Quickie Shrouded Pin Headers are designed with polarization features dependant upon the number of contacts, see table.
Sin polarización: 75869-130LF, 75869-131LF y 75869-132LF
Polarización derecha: 75869-101LF y 75869-102LF
Polarización derecha e izquierda: 75869-103LF, 75869-104LF y 75869-105LF
2.54mm Amphenol FCI Quickie Interconnection System
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
$ 4,87
$ 0,974 Each (In a Pack of 5) (Sin IVA)
5
$ 4,87
$ 0,974 Each (In a Pack of 5) (Sin IVA)
5
Información de stock no disponible temporalmente.
Vuelva a verificar más tarde.
| Cantidad | Precio Unitario sin IVA | Per Pack |
|---|---|---|
| 5 - 120 | $ 0,974 | $ 4,87 |
| 125 - 495 | $ 0,694 | $ 3,47 |
| 500 - 1245 | $ 0,605 | $ 3,02 |
| 1250 - 2495 | $ 0,502 | $ 2,51 |
| 2500+ | $ 0,445 | $ 2,23 |
