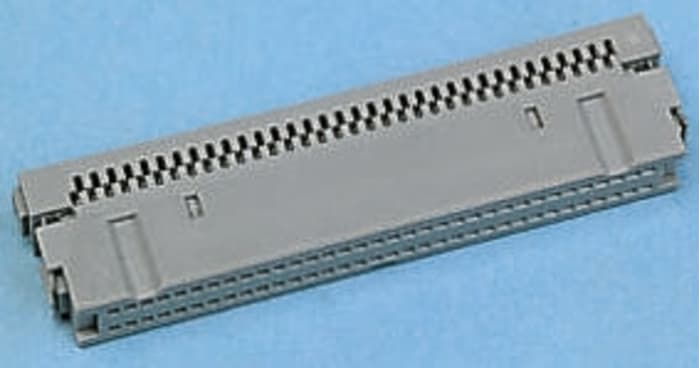

3M 80-Way IDC Connector Female for Cable, 2 Row
Technical Document
Specifications
Brand
3MNumber of Contacts
80
Product Type
IDC Connector
Number of Rows
2
Current
500mA
Pitch
1.27mm
Shrouded/Unshrouded
Shrouded
Connector Gender
Female
Voltage
500.0 V ac
Mount Type
Cable
Orientation
Right Angle
Contact Plating
Gold over Nickel
Minimum Operating Temperature
-60°C
Termination Type
IDC
Series
820
Contact Gender
Female
Maximum Operating Temperature
105°C
Standards/Approvals
No
Contact Material
Beryllium Copper Alloy
Housing Material
Polybutylene Terephthalate
Country of Origin
United States
Product details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 19.20
€ 19.20 Each (Exc. VAT)
1
€ 19.20
€ 19.20 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 19.20 |
| 10 - 24 | € 17.29 |
| 25 - 49 | € 15.75 |
| 50 - 99 | € 14.79 |
| 100+ | € 13.62 |
